Brewery Industry

industrial boiler for brewery factory




Steam boilers are used to provide heat for brewing kettles and other processes. Sitong Boiler provides various boilers with different models and capacities to meet the requirement of beer industry, with a focus on efficiency and performance. Usually, the brewery/winery uses diesel oil and LPG boilers for steam and heat production. Generally, brewery industries with the common size are equipped with the 0.5ton~2ton boilers, the specific capacity should based on the production capacity. Sitong boiler produce


Uses of Boiler & Steam in Brewery Industry

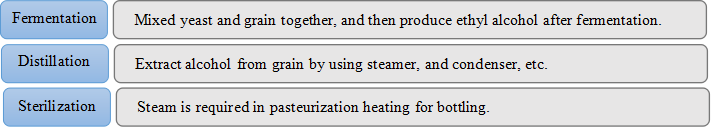

During the process of green malt drying, raw material gelatinizing and saccharifing, wort boiling, beer fermenting, bottle pasteurizing, and sanitization in brewhouse, steam play an significant role.



Types and Specifications of Boilers Suitable for Brewery Industry


WNS Oil Gas Fired Steam Boiler


Capacity: 1~30 t/h

Fuel: heavy oil, diesel, natural gas, LPG, city gas, coke gas, etc.


WNS series steam boiler smoke gas three pass and wet back structure, achieve high thermal efficiency (98%) . This is fire tube boiler, low water quality requirement, the failure rate is lower than 0.1. Adopts international excellent burner, PLC automatic control cabinet, and safety interlock device, operate safely and conveniently.



Oil Gas Fired Once Through Structure Steam Boiler


Capacity: 0.1~2 t/h

Fuel: heavy oil, diesel, natural gas, LPG, city gas, coke gas, etc.


Once through steam boiler is vertical type boiler with small steam capacity, the efficiency is about 96%, it could generate steam within 3~5 minutes. It is full automatic operation and 20% energy saving than ordinary boilers, and it could save cost on infrastructure, energy, and labor.




DZL Biomass Fired Chain Grate Steam Boiler


Capacity: 1~20t/h

Fuel: wheat husk, vinasse, bagasse, straw, rice husk, and other biomass fuels.



Biomass fuel is low polluted, reproducible, and low cost. DZL series boiler adopts small flaker chain grate, high automatic degree. Takes several measures to avoid coking, bulging, and tube plate cracking. The boiler adopts three pass structure and large furnace, to ensure the high thermal efficiency.



SZL BiomassFuel Water Tube Steam Boiler


Capacity: 2~25t/h

Fuel: wood, bagasse, straw, rice husk, and other biomass fuels.


Biomass fuel is low polluted, reproducible, and low cost. SZL double drum boiler adopts membrane wall and automatic feeding system, has the advantages of high thermal efficiency (97%), sufficient output, high steam quality, and low operating cost.





Price of Beer Boilers


The price of textile boilers are based on the capacity and accessories. Generally, the accessories of boilers include burner/grate, electric controller, steam header, water softener, BFW pump, platform ladder, and chimney, etc. If you would like to use the specific devices (brand, materials, quantity, etc.) or the additional equipment (air preheater, economizer, condenser, etc.), the prices are quite different. So, if you would like to get the exact price, please inquire for the details.


Brewery Industry Boiler Projects




  10ton SZL Series Coal Fired Steam Boiler for Zambia Alcohol Factory


  Model:  SZL10-1.25-AII

  Rated Evaporation Capacity: 10ton

  Working Pressure: 1.25 MPa

  Available Fuel: II class bituminous coal




How to Select a Proper Boiler for Brewery Industry



1. Determine the capacity of the boiler. The boiler capacity should based on the Heating Load Curve or Heat Balance Diagram, and includes the heat loss in pipelines, self-used heat of boiler room, available used waste heat. While, usually, it is difficult to get the Heating Load Curve, the heating load could get based on the max thermal consumption per hour within production/heating/domestic, and then determine by using the coefficient.

2. Determine the heating supply medium. Generally, the brewery industry use the steam boiler for production. If there are large hot water demanded as well, both steam boiler and hot water boiler should be used.

3. Determine the boiler heating parameters, including pressure, temperature, etc.

4. Determine the boiler efficiency. In order to benefit for economic management, the boilers should have high thermal efficiency, and the boiler output, quantity and other performances have to adapt to the change of heat loading.

5. It’s better to select the boilers with same capacity or combustion equipment. If different, the max limitation is two models, to decrease the problems of equipment layout and management.
