Rice Mill





Rice is an important food crop in the world, and rice mill is one of the oldest industries. Steam boiler is the main equipment for parboiling. Rice industry is one of the most energy consuming industries. It uses rice husk as a fuel. Saving of husk would also lead to co-generation of thermal energy in furnaces for boilers and dryers in the rice industry.  Thus energy conservation in the rice industry would lead to reduction in the use of fuels and electricity. While, alternate fuels are available in plenty and at low prices.


Types and Specifications of Boiler Suitable for Rice Mill

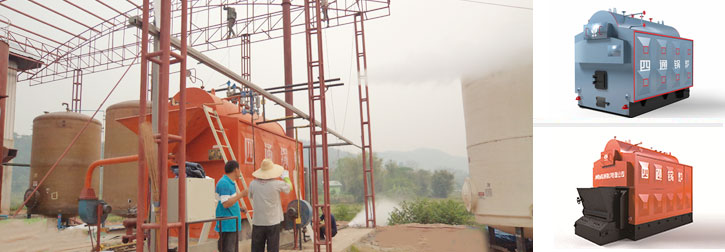

DZH Series Rice Husk Moving Grate Steam Boiler


Capacity: 0.5~4t/h

Fuel: rice husk, straw, wood, other biomass fuels, coal, etc.



DZH rice husk fired boiler has single drum, the combustion equipment is moving grate. It has the advantages of high thermal efficiency, avoid coking & bulging, low cost on fuel, environment protect, etc.






SZL Biomass Fuel Water Tube Steam Boiler


Capacity: 0.5~25t/h

Fuel: rice husk, wood, straw, and other biomass fuels.



Biomass fuel is low polluted, reproducible, and low cost. SZL double drum boiler adopts membrane wall and automatic feeding system, has the advantages of high thermal efficiency (97%), sufficient output, high steam quality, and low operating cost.







WNS Horizontal Type Oil Gas Fire Tube Steam Boiler

Capacity: 1~30 t/h

Fuel: heavy oil, diesel, natural gas, LPG, city gas, coke gas, etc.



WNS series steam boiler smoke gas three pass and wet back structure, achieve high thermal efficiency (98%) . This is fire tube boiler, low water quality requirement, the failure rate is lower than 0.1. Adopts international excellent burner, PLC automatic control cabinet, and safety interlock device, operate safely and conveniently.






Price of Rice Mill Boilers



The price of rice mill boiler is based on the capacity and accessories. Generally, the accessories of boilers include burner/grate, electric controller, steam header, water softener, BFW pump, platform ladder, and chimney, etc. If you would like to use the specific devices (brand, materials, quantity, etc.) or the additional equipment (air preheater, economizer, condenser, etc.), the prices are quite different. So, if you would like to get the exact price, please inquire for the details.



How to Select a Proper Boiler for Rice Mill



1. Determine the capacity of the boiler. The boiler capacity should based on the Heating Load Curve or Heat Balance Diagram, and includes the heat loss in pipelines, self-used heat of boiler room, available used waste heat. While, usually, it is difficult to get the Heating Load Curve, the heating load could get based on the max thermal consumption per hour within production/heating/domestic, and then determine by using the coefficient.

2. Determine the boiler heating parameters, including pressure, temperature, etc.

3. Determine the boiler efficiency. In order to benefit for economic management, the boilers should have high thermal efficiency, and the boiler output, quantity and other performances have to adapt to the change of heat loading.

4. It is better to select the boilers with same capacity or combustion equipment. If different, the max limitation is two models, to decrease the problems of equipment layout and management.
