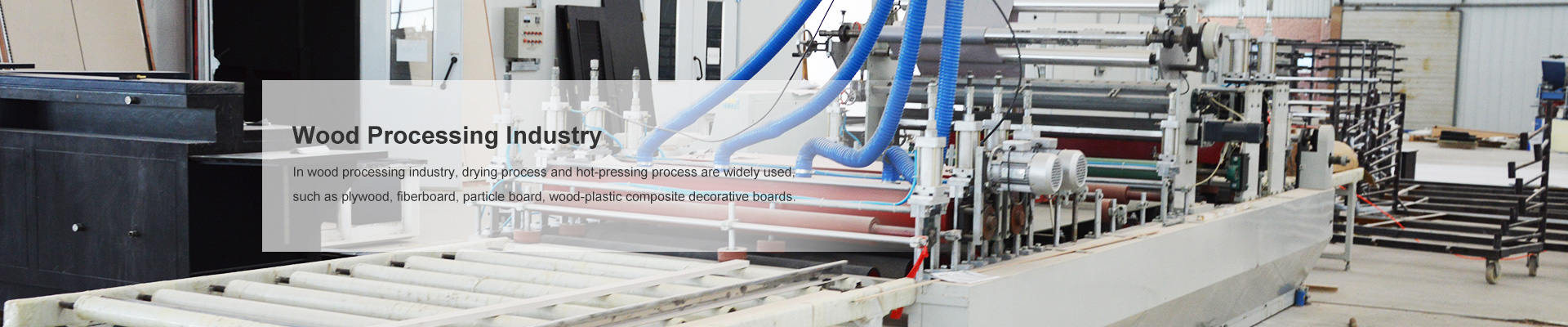

Wood Processing Industry




In wood processing industry, drying process and hot-pressing process are widely used, such as plywood, fiberboard, particle board, wood-plastic composite decorative boards. Industrial boilers and pressure vessels are used as heat-transfer medium for wood preservation, digestion, and drying.


Types and Specifications of Boiler Suitable for Wood Processing Industry

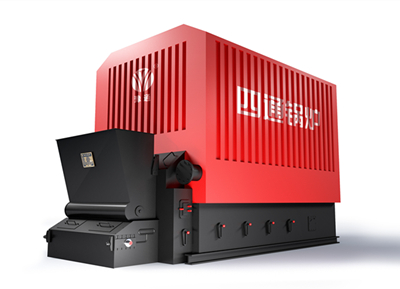

YLW Series Wood Fired Chain Grate Thermal Oil Heater

Capacity: 1400~12000kw

Fuel: Coal,wood chip, bagasse, straw, and other bagasse fuel



YLW series coal/biomass fired thermic fluid heater is an safe and energy saving boiler, it could get high temperature (350℃) under a low working pressure (0.8 MPa). It has sufficient output and high heat utilization efficiency.





SZL Biomass Fuel Water Tube Steam Boiler

Fuel: rice husk, wood, straw, and other biomass fuels.



Biomass fuel is low polluted, reproducible, and low cost. SZL double drum boiler adopts membrane wall and automatic feeding system, has the advantages of high thermal efficiency (97%), sufficient output, high steam quality, and low operating cost.

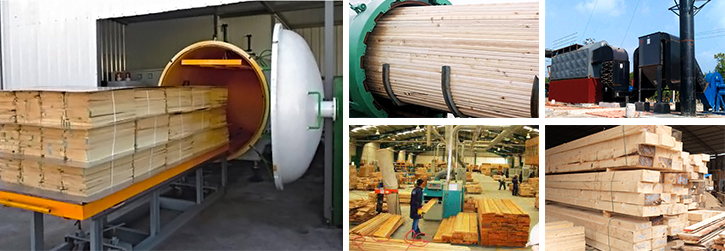

Wood Preservation Autoclave

wood treat capacity: 1-40M3

Design pressure: 0.8-1.4Mpa

Design temperature: 0-180℃



Wood preservation autoclave belongs to pressure vessels, it is a kind of wood protection equipment,It has the advantages of wide applicability, good treat efficiency, large capacity, reasonable layout, and safety operation, etc



Price of Wood Processing Industry Boilers


The price of wood processing industrial boilers is based on the capacity and accessories. Generally, the accessories of boilers include burner/grate, electric controller, steam header, water softener, BFW pump, platform ladder, and chimney, etc. If you would like to use the specific devices (brand, materials, quantity, etc.) or the additional equipment (air preheater, economizer, condenser, etc.), the prices are quite different. So, if you would like to get the exact price, please inquire for the details.


Wood Processing Industry Boiler Projects




  6tph Wood Fired Chain Grate Steam Boiler for Bangladesh Wood Processing


 Model: DZL6-1.6-T

 Rated Evaporation Capacity: 6 ton (6t/h, 4.2MW, 3600000Kcal)

 Working Pressure: 1.6 MPa (16bar, 16kg/m2, 232PSI)

 Available Fuel: wood





 8ton SZL Series Chain Grate Steam Boiler for Bangladesh Gypsum Boards Factory


 Model:  SZL8-1.0-AII

 Rated Evaporation Capacity: 8ton (8t/h, 5.6MW, 4800000Kcal)

 Working Pressure: 1.0 MPa (10bar, 10kg/m2, 145PSI)

 Available Fuel: II class bituminous coal





  3500KW YLW Wood Fired Thermal Oil Boiler for Indonesia Plywood Production Line


 Model: YLW-3500MA

 Steam capacity: 3500KW

 Working pressure: 0.8MPa

 Highest working temperature: 320℃

 Fuel: Waste wood




How to Select a Proper Boiler for Wood Processing Industry


1. Determine the capacity of the boiler. The boiler capacity should based on the Heating Load Curve or Heat Balance Diagram, and includes the heat loss in pipelines, self-used heat of boiler room, available used waste heat. While, usually, it is difficult to get the Heating Load Curve, the heating load could get based on the max thermal consumption per hour within production/heating/domestic, and then determine by using the coefficient.

2. Determine the boiler heating parameters, including pressure, temperature, etc.

3. Determine the boiler efficiency. In order to benefit for economic management, the boilers should have high thermal efficiency, and the boiler output, quantity and other performances have to adapt to the change of heat loading.

4. It is better to select the boilers with same capacity or combustion equipment. If different, the max limitation is two models, to decrease the problems of equipment layout and management.
