Horizontal Type Diesel Fired Boiler
- Capacity :1~30 t/h
- Pressure :0.7/1.0/1.25/1.6 MPa
- Available Fuel :Heavy oil, diesel, natural gas, lpg, etc.
- Application : Textile mill, brewery industry, rice mill, laundry, hotel, etc.
- Brief Intro :WNS series horizontal type diesel fired boiler is a safe and high efficiency (98%) heating equipment with high automation, it is fast assemble boiler with flue gas three pass and wet back structure, widely used for industrial production.
Email: [email protected]

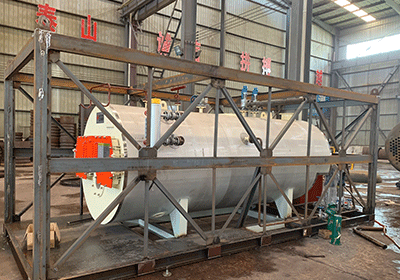

The skid-mounted boiler is a kind of integrated boiler system including all auxiliary equipment such as the boiler proper, control system, water softener, soft water tank, feeding water pumps, steam header, fuel tank and instrument valves in one container, and realizes the mobility of the overall boiler equipment. The boiler only needs to be connected to the power supply and then it can run fully automatically. The instrument and control system of the boiler are all completed in the container. The container is equipped with lighting, doors, windows, drain pipes and other facilities. With fast-moving characteristics, it can be transported by car to various complex sites, such as oil fields, road construction sites, bridge construction sites, mobile units, and field operations where boilers are needed. The container boiler auxiliary equipment is complete, and the installation is simple and fast. The user only needs to simply assemble the water supply, steam supply pipeline and power supply to the place of use.
Performance Advantages
1. Reduce the workload of on-site construction and shorten the construction period.
2. Improve boiler project construction efficiency and ensure the construction quality.
3. Save installation resources and reduce engineering investment.
4. Easy operation and maintaining.
5. High reuse value. The skid-mounted boiler has strong mobility and high reuse rate.
Parameters
Steam Boiler
Model |
Rated evaporation capacity (t/h) |
Rated steam pressure (Mpa) |
Thermal efficiency (%) |
Fuel consumption |
Overall dimension (m) |
Body Heating Area (m2) |
||
Light oil (Kg/h) | Natural gas (Nm³/h) | |||||||
WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | >90 | 66.5 | 75 | 4 | 25 | |
WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | >90.2 | 133 | 150 | 8 | 60 | |
WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | >91 | 266 | 300 | 13 | 113 | |
WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | >91.5 | 399 | 450 | 19 | 181 | |
WN8-1.25/1.6-Y(Q) | 8 | 1.25/1.6 | >91.6 | 532 | 600 | 22.6 | 190 | |
WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | >91.8 | 997 | 1125 | 34 | 346 | |
WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | >92 | 1204 | 1418 | 45 | 467 | |
Note: Parameter is for reference only, we can design the boilers based on customers’ needs. |
Hot Water Boiler
Model | Rated Power (MW) | Working Pressure (MPa) | Efficiency (%) | Fuel consumption |
|
|||
Light Oil (kg/h) | LNG (Nm3/H) | CG (Nm3/H) | ||||||
WNS 1.05-95/70-Y(Q) | 1.05 | 0.7 | 91~93 | 98.5 | 253.7 | 3400 | ||
WNS 1.75-95/70-Y(Q) | 1.75 | 1.0 | 91~93 | 164.2 | 422.8 | 4800 | ||
WNS 2.1-95/70-Y(Q) | 2.1 | 1.0 | 91~93 | 197 | 507.3 | 6682 | ||
WNS4.2-95/70-Y(Q) | 4.2 | 1.0 | 91~93 | 394 | 1014.6 | 12400 | ||
WNS7-95/70-Y(Q) | 7 | 1.0 | 91~93 | 656.7 | 1691 | 15300 | ||
Note: 1. The hot value of LNG: 8500kal/Nm3, hot value of light oil: 10300kal/Nm3, hot value of the city coal gas: 4000kal/Nm3 2. Parameter is for reference, if any changes, should follow the actual drawing. |
Application:
Performance Advantages
1. Reduce the workload of on-site construction and shorten the construction period.
2. Improve boiler project construction efficiency and ensure the construction quality.
3. Save installation resources and reduce engineering investment.
4. Easy operation and maintaining.
5. High reuse value. The skid-mounted boiler has strong mobility and high reuse rate.
Model |
Rated evaporation capacity (t/h) |
Rated steam pressure (Mpa) |
Thermal efficiency (%) |
Fuel consumption |
Overall dimension (m) |
Body Heating Area (m2) |
||
Light oil (Kg/h) | Natural gas (Nm³/h) | |||||||
WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | >90 | 66.5 | 75 | 4 | 25 | |
WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | >90.2 | 133 | 150 | 8 | 60 | |
WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | >91 | 266 | 300 | 13 | 113 | |
WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | >91.5 | 399 | 450 | 19 | 181 | |
WN8-1.25/1.6-Y(Q) | 8 | 1.25/1.6 | >91.6 | 532 | 600 | 22.6 | 190 | |
WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | >91.8 | 997 | 1125 | 34 | 346 | |
WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | >92 | 1204 | 1418 | 45 | 467 | |
Note: Parameter is for reference only, we can design the boilers based on customers’ needs. |
Model | Rated Power (MW) | Working Pressure (MPa) | Efficiency (%) | Fuel consumption |
|
|||
Light Oil (kg/h) | LNG (Nm3/H) | CG (Nm3/H) | ||||||
WNS 1.05-95/70-Y(Q) | 1.05 | 0.7 | 91~93 | 98.5 | 253.7 | 3400 | ||
WNS 1.75-95/70-Y(Q) | 1.75 | 1.0 | 91~93 | 164.2 | 422.8 | 4800 | ||
WNS 2.1-95/70-Y(Q) | 2.1 | 1.0 | 91~93 | 197 | 507.3 | 6682 | ||
WNS4.2-95/70-Y(Q) | 4.2 | 1.0 | 91~93 | 394 | 1014.6 | 12400 | ||
WNS7-95/70-Y(Q) | 7 | 1.0 | 91~93 | 656.7 | 1691 | 15300 | ||
Note: 1. The hot value of LNG: 8500kal/Nm3, hot value of light oil: 10300kal/Nm3, hot value of the city coal gas: 4000kal/Nm3 2. Parameter is for reference, if any changes, should follow the actual drawing. |
Transaction Process
PRE-SALE SERVICE
1) 24 hours customer service hot line, we will offer you professional technical data, suggestion, and purchase guidance.
2) Welcome to visit our factory, we could offer you free airport pick up service, and help you book hotel, tickets, or plan route, etc.ON-SALE SERVICE
Our professional engineering team will customize the boiler based on your requirement. Also, we could help arrange the boiler room and offer appropriate energy utilization plan, to maximum boiler users’ profit. Sitong Boiler cooperates with experienced transportation agency, to ensure the products arrive to destination intactly. We have overseas installation team for door to door installation, debugging, and periodic maintenance.
Process
customer inquiry -- professional consulting service, customize boiler based on requirement -- place order and pay deposit -- boiler manufacturing -- pay balance -- delivery -- installation, debugging and periodic maintenance
AFTER-SALE SERVICE
1) Offer lifelong door - to - door after sale service and quarterly visiting. We have professional overseas engineering team and overseas agencies, to solve users’ problems during boiler operation
2) 24 months warranty period, if boiler body or accessories are damaged under proper operation, Sitong boiler will maintenance or replace the damaged accessories for free (except spare parts).
3) 24 hours service hot-line, offer proper solutions to solve the problems happened during operation.
