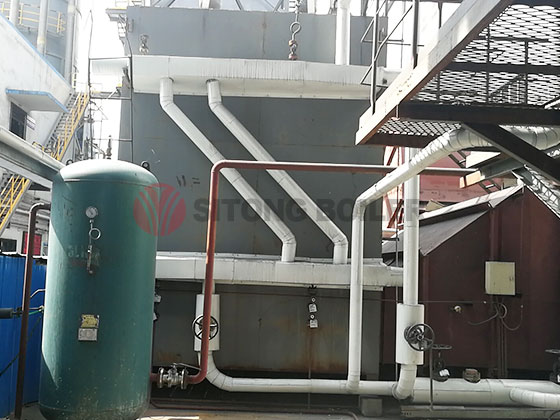

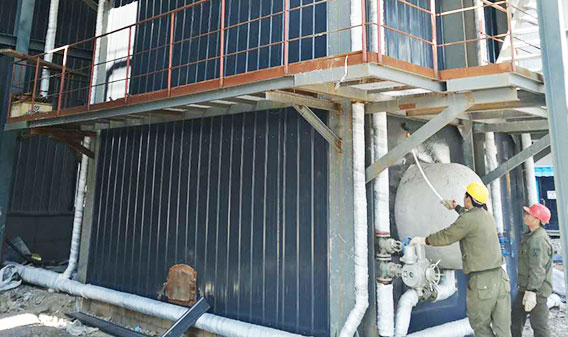

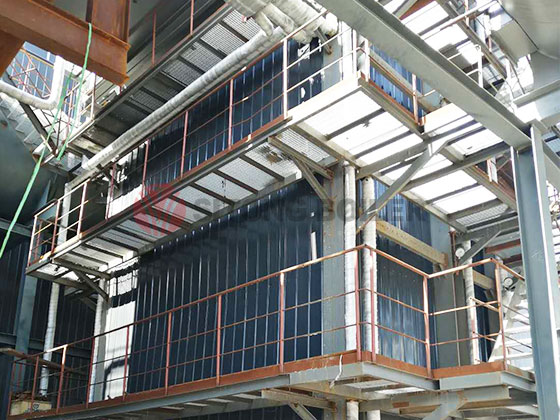

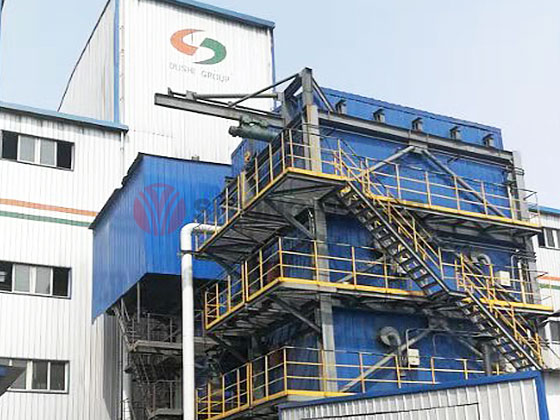

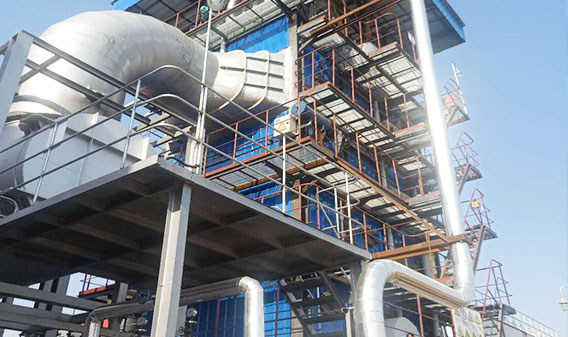

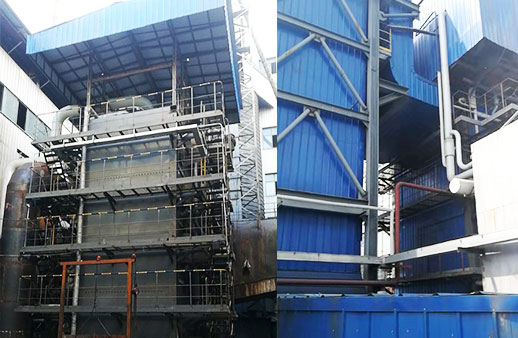

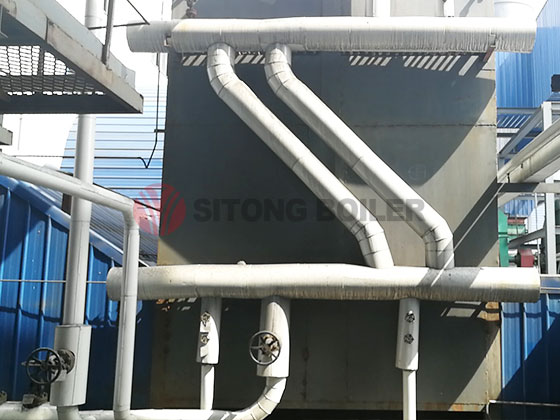

Waste Heat Recovery Boiler

  • Overview
  • Advantage
  • Parameter

Waste heat boiler is the significant energy saving equipment, it produces steam or hot water by utilizing the heat of exhaust gas, waste liquid during production process, also, it can use the heat of dynamic mechanical exhaust gas. The high temperature flue gas generated by waste material or waste liquid goes into the furnace of waste heat boiler, working medium inside of waste heat boiler will take it into the front and end smoke chamber in order, then high temperature flue gas become the low temperature flue gas discharged into the atmosphere by the chimney.


Generally, the waste heat recovery boiler is installed in gas duct, generate steam by absorbing the flue gas waste heat, and decrease the exhaust smoke temperature. Compare with the ordinary steam boilers, waste heat recovery boiler do not burn fuels. It could change waste into wealth, has the advantages of energy saving and low production cost. Because of the flue gas temperature is relatively low when enter into the waste heat recovery boiler , the heating area is much larger.


Main Waste Heat Boiler Types


1. Horizontal three wastes mixed burning blown gas waste heat water
2. Carbon rotary kiln waste heat boiler
3. Tank type carbon waste waste heat boiler
4. Coking waste heat boiler (after burning)
5. Hazardous waste incineration of waste heat boiler
6. CDQ waste heat boiler, glass kiln waste heat boiler
7. Sintering machine waste heat boilers, sulfuric acid heat boiler
8. Oil catalytic cracking of waste heat boiler
9. Non-ferrous metal smelting waste heat boiler
10. Steel smelting wate heat boiler
11. Pure low temperature waste heat boiler in cement kiln
12. Gas turbine waste heat boiler
We could design the boiler according to the user’s specific requirement.


Application


The waste heat boilers are widely used for various industries, such as glass industry, coking industry, pyrite-based sulfuric acid product industry, fertilizer plant, chemical industry (methyl alcohol, ethyl alcohol, formaldehyde, synthesis ammonia), cement manufacturing, cogeneration and concentrated heating for carbon rotary kiln, etc.


Advantages


1. Energy saving and reduce production cost

The boiler produces steam or hot water by utilizing the heat of exhaust gas or waste liquid during production process, do not need burn fuels, save energy.


2. Compact structure, high thermal efficiency

Adopts acicular heat exchanger, the heat exchange area is 6~8 times of smooth-tube heat exchanger. All the welding line is automatic welding, and detected by X-rays to ensure the quality. The volume and weight is decrease, lower cost on boiler installation.


3. Anti-corrosion

Based on the different waste heat recovery boilers, Sitong boiler takes several measures to avoid the heating area is corroded by flue gas.


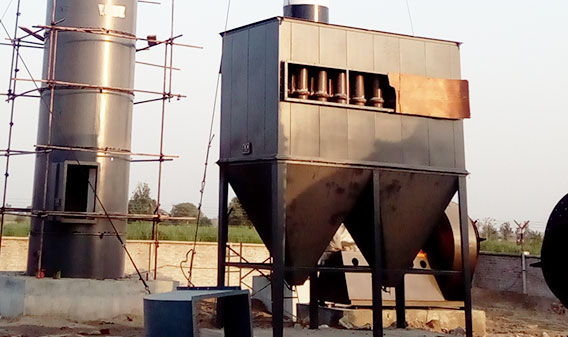

4. Environmental protection

According to the different waste gas, equipped with different dust remover or desulfurization equipment to meet the requirement of environmental protection.


Parameter


Model

Evaporation capacity

 (t/h)

Rated Steam Temperature

(℃)

Working Pressure

(Mpa)

Inlet Gas Capacity

(m³/h)

Inlet Gas Temperature

(℃)

Exhaust Gas Temperature

(℃)

Q11/950-4-2.5/400 4 400 2.5 11000 950 190
Q15/800-5-2.6/401 5 400 2.6 15000 800 180
Q26.8/900-9.8-2.5/400 9.8 400 2.5 26800 900 159
Q25.5/930-10-2.5/400 10 400 2.5 25500 930 148.4
Q38.2/930-15-2.5/400 15 400 2.5 38200 930 150
Q50/1100-25-2.5/400 25 400 2.5 50000 1100 157.1
Q72/860-25-3.82/450 25 450 3.82 72000 860 189

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

2. Here is a part of parameters, please consult for more information.
3. We could design products based on customers’ requirement.


1. Energy saving and reduce production cost

The boiler produces steam or hot water by utilizing the heat of exhaust gas or waste liquid during production process, do not need burn fuels, save energy.


2. Compact structure, high thermal efficiency

Adopts acicular heat exchanger, the heat exchange area is 6~8 times of smooth-tube heat exchanger. All the welding line is automatic welding, and detected by X-rays to ensure the quality. The volume and weight is decrease, lower cost on boiler installation.


3. Anti-corrosion

Based on the different waste heat recovery boilers, Sitong boiler takes several measures to avoid the heating area is corroded by flue gas.


4. Environmental protection

According to the different waste gas, equipped with different dust remover or desulfurization equipment to meet the requirement of environmental protection.


Model

Evaporation capacity

 (t/h)

Rated Steam Temperature

(℃)

Working Pressure

(Mpa)

Inlet Gas Capacity

 (m³/h)

Inlet Gas Temperature

(℃)

Exhaust Gas Temperature

(℃)

Q11/950-4-2.5/400 4 400 2.5 11000 950 190
Q15/800-5-2.6/401 5 400 2.6 15000 800 180
Q26.8/900-9.8-2.5/400 9.8 400 2.5 26800 900 159
Q25.5/930-10-2.5/400 10 400 2.5 25500 930 148.4
Q38.2/930-15-2.5/400 15 400 2.5 38200 930 150
Q50/1100-25-2.5/400 25 400 2.5 50000 1100 157.1
Q72/860-25-3.82/450 25 450 3.82 72000 860 189

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

2. Here is a part of parameters, please consult for more information.
3. We could design products based on customers’ requirement.
