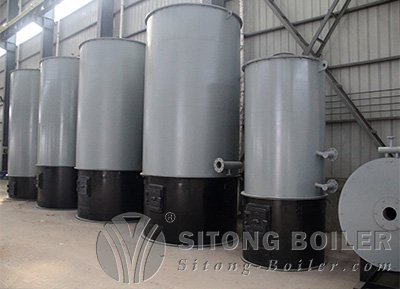

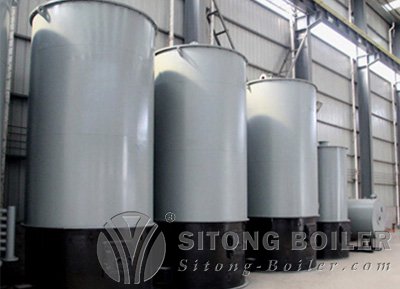

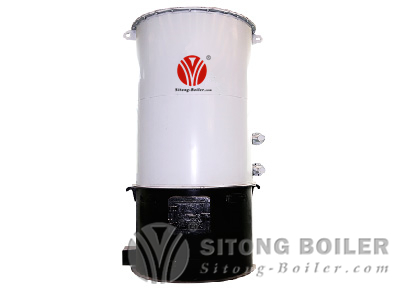

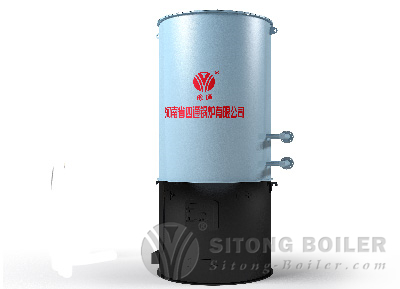

YGL Vertical Type Thermal Oil Heater

  • Overview
  • Advantage
  • Parameter

YGL series vertical type thermal oil heater is an safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (350℃). It is vertical type boiler, the combustion equipment is moving grate, could feed manually or mechanically. The fuel could be both coal and biomass fuels, includes wood, bagasse, straw, peanut shell, rice husk, etc.



The heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. Sitong Boiler has a mature R&D and design team, could customize the boilers based on customers’ requirement.



Application



Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the thermal oil heater could be widely used in a variety of industrial production.



1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.

2) Food industry - cooking, drying, vegetable oil refining.

3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.

4) Plastics industry - plastics fired, extruded shape.

5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.

6) Paper industry - drying, corrugated paper processing, calender, glue roller.

7) Wood industry - hot processing, heat setting.

8) Machinery industry - drying, assembly processing

9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.

10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry

11) Other applications


Technical Advantages



1. High thermal efficiency

1) The boiler is circulation heating in liquid phase, there is no heat loss leaded by condensing, thermal efficiency is high, and the boiler is very safe when operating.

2) Adopts horizontal type three pass structure, improve the heat utilization efficiency.

3) The boiler shell use aluminum silicate board for heat preservation, low heat loss.

4) Equipped with economizer, make full use of flue gas heat, decrease the exhaust smoke temperature.



2. Large combustion chamber

1) The boiler combustion chamber is composed with chain grate and large diameter coil, large combustion space, high combustion efficiency.

2) Combustion equipment and boiler upper part are designed separately, the boiler combustion chamber could be designed based on the characteristics of different fuels, wide adaptability of different fuels.

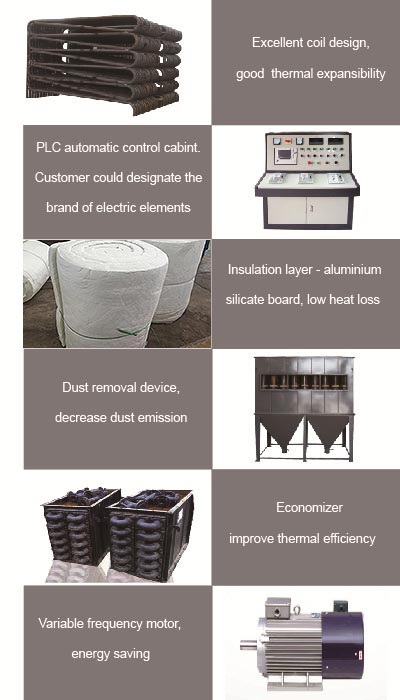

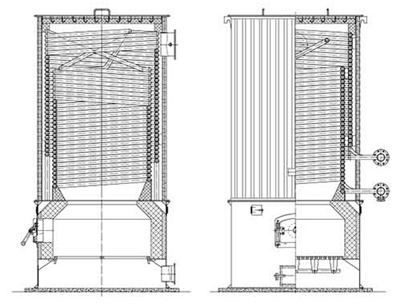

3. Excellent coil design

The radiation section adopts square coil, and the convection section adopts serpentine coil, the heating coil has a good thermal expansibility, low stress, safe and reliable.


4. Sufficient output

The boiler adopts horizontal type three pass structure, improve the heat utilization efficiency. Large heating area, good heat transfer, achieve high thermal efficiency and sufficient output.


5. Perfect automatic control

The boiler adopts PLC full automatic intelligent control cabinet and interlock protect system, has the protect function on oil temperature, medium temperature, pressure, etc, adjust conveniently.


6. Compact Structure

The boiler is vertical type, covers a small area, low cost, and convenient for installation.


Parameter


Model Rated power (kw) Thermal efficiency (%) Rated pressure (Mpa) Working pressure (Mpa) Working temperature (℃) Overall dimension L×W×H(mm) Reference weight (t)
YGL-120MA 120 75 1.1 0.8 <350 1220×1140×2550 2.2
YGL-350MA 350 75 1.1 0.8 <350 1873×1683×3358 3.4
YGL-700MA 700 75 1.1 0.8 <350 2276×2100×3840 4.8
YGL-1000MA 1000 75 1.1 0.8 <350 2900×2500×4785 7.4
YGL-1200MA 1200 75 1.1 0.8 <350 2900×2500×5133 8.0
YGL-1400MA 1400 75 1.1 0.8 <350 3000×2900×5430 10.2
Note: Parameter is for reference only,if any changes should follow actual drawings.


1. High thermal efficiency

1) The boiler is circulation heating in liquid phase, there is no heat loss leaded by condensing, thermal efficiency is high, and the boiler is very safe when operating.

2) Adopts horizontal type three pass structure, improve the heat utilization efficiency.

3) The boiler shell use aluminum silicate board for heat preservation, low heat loss.

4) Equipped with economizer, make full use of flue gas heat, decrease the exhaust smoke temperature.



2. Large combustion chamber

1) The boiler combustion chamber is composed with chain grate and large diameter coil, large combustion space, high combustion efficiency.

2) Combustion equipment and boiler upper part are designed separately, the boiler combustion chamber could be designed based on the characteristics of different fuels, wide adaptability of different fuels.


3. Excellent coil design

The radiation section adopts square coil, and the convection section adopts serpentine coil, the heating coil has a good thermal expansibility, low stress, safe and reliable.


4. Sufficient output

The boiler adopts horizontal type three pass structure, improve the heat utilization efficiency. Large heating area, good heat transfer, achieve high thermal efficiency and sufficient output.


5. Perfect automatic control

The boiler adopts PLC full automatic intelligent control cabinet and interlock protect system, has the protect function on oil temperature, medium temperature, pressure, etc, adjust conveniently.


6. Compact Structure

The boiler is vertical type, covers a small area, low cost, and convenient for installation.


Model Rated power (kw) Thermal efficiency (%) Rated pressure (Mpa) Working pressure (Mpa) Working temperature (℃) Overall dimension L×W×H(mm) Reference weight (t)
YGL-120MA 120 75 1.1 0.8 <350 1220×1140×2550 2.2
YGL-350MA 350 75 1.1 0.8 <350 1873×1683×3358 3.4
YGL-700MA 700 75 1.1 0.8 <350 2276×2100×3840 4.8
YGL-1000MA 1000 75 1.1 0.8 <350 2900×2500×4785 7.4
YGL-1200MA 1200 75 1.1 0.8 <350 2900×2500×5133 8.0
YGL-1400MA 1400 75 1.1 0.8 <350 3000×2900×5430 10.2
Note: Parameter is for reference only,if any changes should follow actual drawings.
