Capacity : 0.5t/h-10t/h
Pressure : 1.0Mpa-2.5Mpa
Fuel : wood chips, bagasse, straw, olive bone, coconut shell,peanut shell, pellets, rice husk and other biomass fuels
Application : Textile plant, wood factory, rice mill, farm,paper mill, chemical plant,food plant, etc.

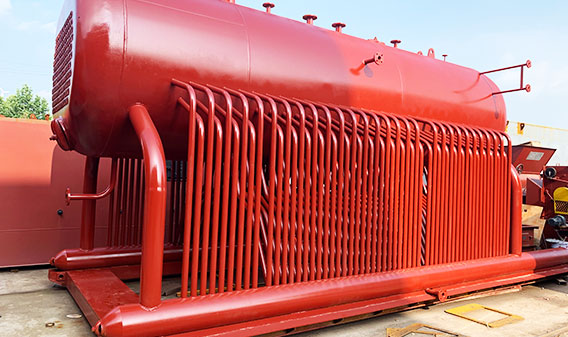

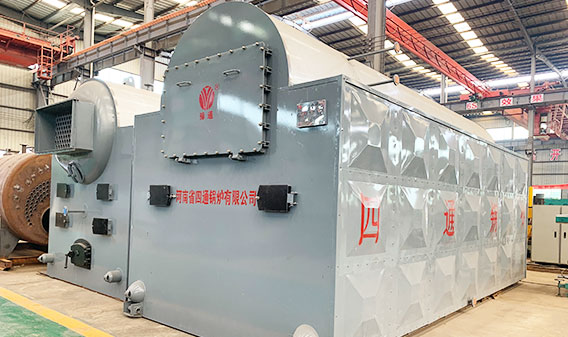

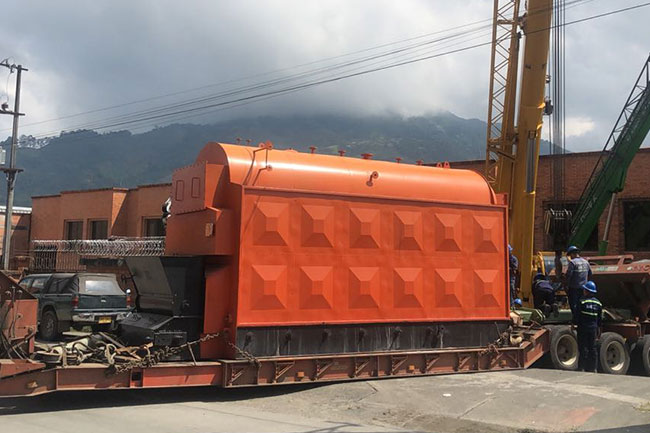

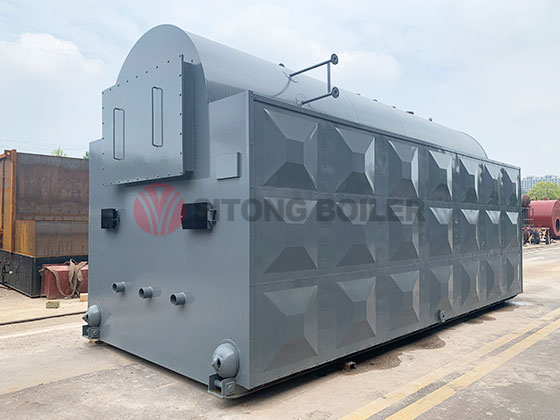

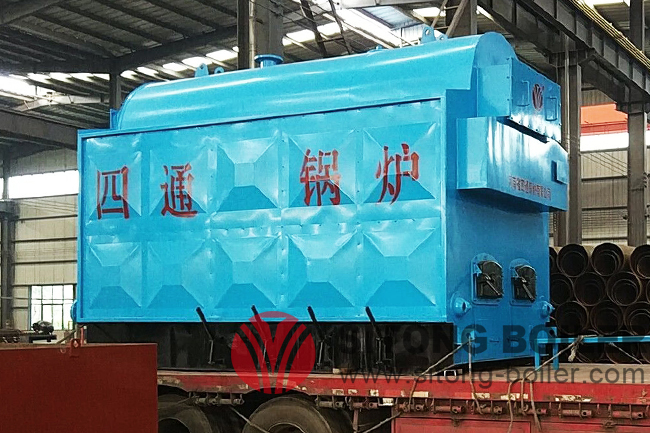

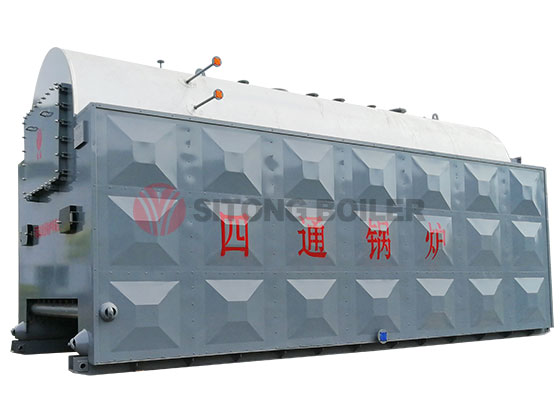

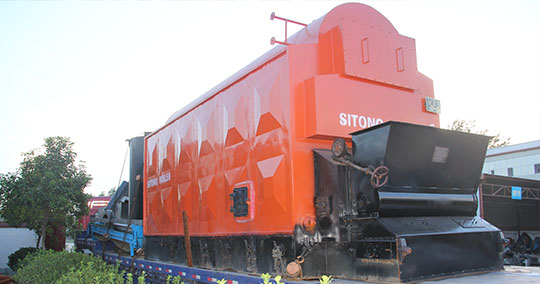

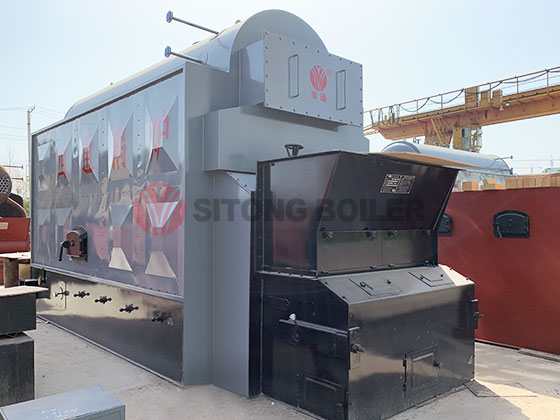

Brief Intro : DZL Series chain grate wood fired fired boiler is drum boiler with both water tubes and fire tubes, the combustion equipment is chaingrate, has the advantages of high efficiency, anti coking, and sufficient output, etc.
Email: [email protected]
1. Avoid tube plate cracking

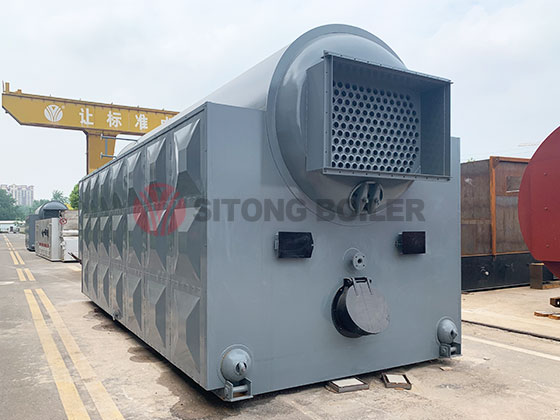

The design of the two-wing flue makes the flue gas smoothly enter the front smoke box, ensure the same even temperature of the front tube sheet, avoid the tube plate crack due to temperature stress.2. Spirally corrugated tube

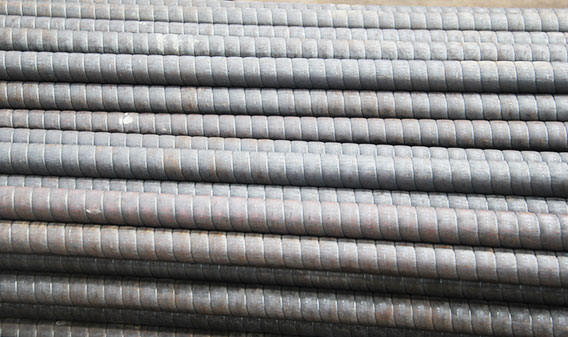

The single-pass threaded tube inside the drum enhanced the heat transfer performance. Threaded tubes also have the function of self-cleaning, to avoid the ash accumulation in the tube.
3. Both sides air inlets

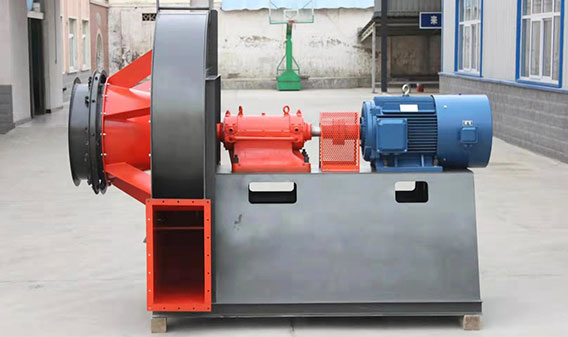

The boiler adopts double-side air inlet & independent air chamber structure, which can flexibly adjust the air volume and wind pressure of each air chamber to ensure the combustion performance.4. Remote monitoring

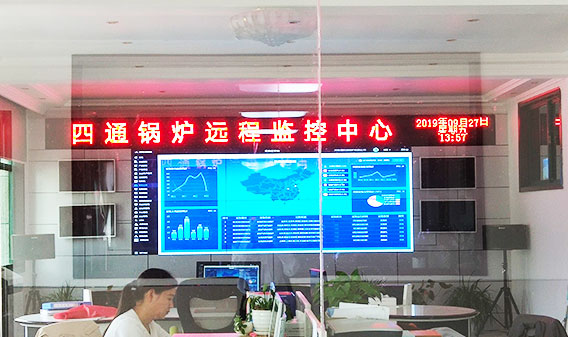

Advanced control system--remote monitoring, if there is any abnormality during the operation of the boiler, providing the first time guidance to reduce the failure rate and loss.
Steam Boiler
| Model |
Rated Steam Capacity (t/h) |
Rated Steam Pressure (MPa) |
Rated Steam Temperature (℃) |
Coal Consumption (Kg/h) |
Thermal Efficiency (%) |
Overall Dimension L*W*H（m） |
Weight (t) |
||
| DZL2-0.7/1.0/1.25- AII/T | 2 | 0.7/1.0/1.25 | 170/184/194 | 135 | 82 | 5.5×2.3×3.3 | 23 | ||
| DZL6-1.25/1.6- AII/T | 6 | 1.25/1.6 | 194/204 | 810 | 82 | 7.5×2.9×3.8 | 35 | ||
| DZL8-1.25/1.6- AII/T | 8 | 1.25/1.6 | 194/204 | 1150 | 82 | 8.1×3.1×3.8 | 45 | ||
| DZL10-1.25/1.6- AII/T | 10 | 1.25/1.6 | 194/204 | 1350 | 82 | Up 7.7×3.2×3.6 | Down 8.6×3×2.6 | 61 | |
| DZL15-1.6/2.5- AII/T | 15 | 1.6/2.5 | 204/226 | 2200 | 83 | Up 1.0×3.24×3.54 | Down 12×3.2×3.08 | 77 | |
| DZL20-1.25/1.6- AII/T | 20 | 1.6/2.5 | 204/226 | 3160 | 83 | Up 11×3.24×3.54 | Down 14×3.2×3.08 | 78 | |
|
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2. Available fuel: coal, lower heating value: Q≈21,000 KJ/Kg |
|||||||||
Hot Water Boiler
| Model |
Rated power (MW) |
Rated pressure (Mpa) |
Supply water temperature(℃) |
Return water temperature (℃) |
Fuel consumption (kg/h) |
Thermal Efficiency (%) |
Overall Dimension L*W*H（m）
|
Weight (t) |
| DZL0.7-0.7/95/70 | 0.7 | 1.0 | 95 | 70 | 151 | 82 | 5.1x2.2x3 | 17 |
| DZL1.4-0.7/95/70 | 1.4 | 1.0 | 95 | 70 | 302 | 82 | 5.5x2.3x3.3 | 23 |
| DZL2.8-0.7/95/70 | 2.8 | 1.0 | 95 | 70 | 600 | 82 | 6.6x2.6x3.6 | 25 |
| DZL4.2-1.0/95/70 | 4.2 | 0.7 | 95 | 70 | 880 | 82 | 7.5x2.9x3.8 | 35 |
| DZL5.6-1.25/95/70 | 5.6 | 0.7 | 95 | 70 | 1150 | 82 | 8.1x3.1x3.8 | 45 |
|
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2. Available fuel: coal, lower heating value: Q≈21,000 KJ/Kg |
||||||||
Sitong Boiler Co., Ltd is the professional manufacturer of Grade A industrial boilers, engages in industrial boiler design, manufacturing, transportation, installation, and after-sale service.
