Power consumption of different capacity electric heating boilers.
Steam Capacity (Ton) 0.1 0.2 0.3 0.5 0.7 1.0 1.5 Power Consumption (KW) 75 147 219 368 547 731 1083 -
Automatic operation device
Sitong electric heating boiler employs full automatic intelligent control technology, and adopts PLC control system to make the operation more simple and safe.
The boiler controller uses SIEMENS/ DELIXI electrical components. Operator can control water level, water temperature, fire situation and working pressure, etc. Moreover, the operation parameters could be set, and they are shown on the screen. -
The lifetime of cartridge heaters/ electrical heated tube.
The electrical heated tube have the CE and CCC certification to guarantee the long working time, it can be used for about 20000 hours.
-
Thickness of insulation heat preservation materials
The thickness of insulation heat preservation materials is different based on the requirement of internal temperature, external temperature, or heat loss requirement. Generally, the thickness of the insulation heat preservation materials are between 100~200mm.
The common insulation heat preservation materials are includes rock wool, aluminium silicate products and cement perlite products.
The highest operate temperature of rock wool is 600℃, it has a rather lower thermal conductivity, the heat insulation performance is better. The highest operate temperature of aluminium silicate products is 800℃, it has an excellent and reliable physical insulating property. -
Safety interlock system

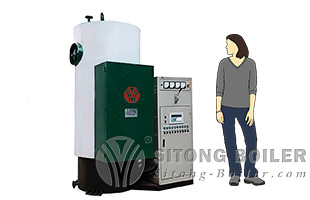

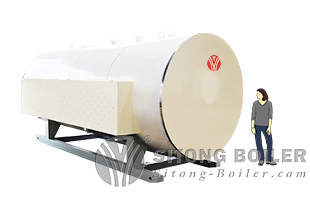

Sitong electric heating boiler production device:
1.Monitoring of water level
2.Steam over-pressure protection
3.Electric leakage protection
4.Water shortage protection
5.Power abnormal protection
6.Integrated gas manifolds and protection system
7.Flue gas monitoring device
