Moving Grate Rice Husk Boiler

  • Overview
  • Advantage
  • Parameter

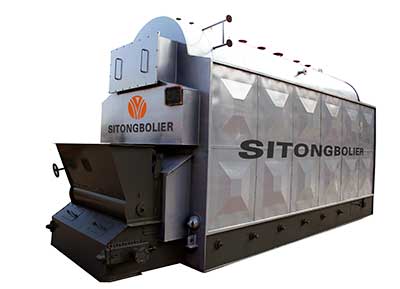

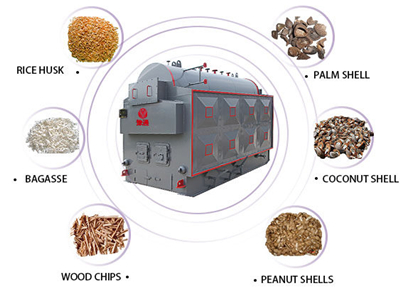

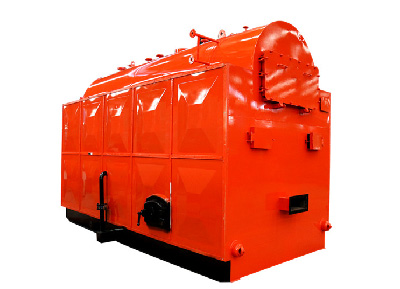

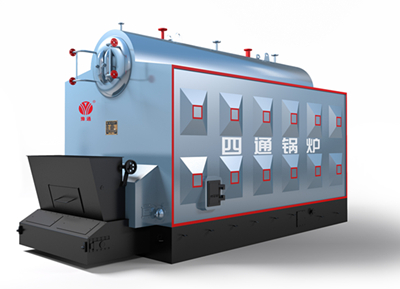

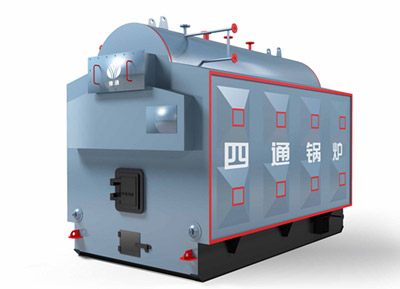

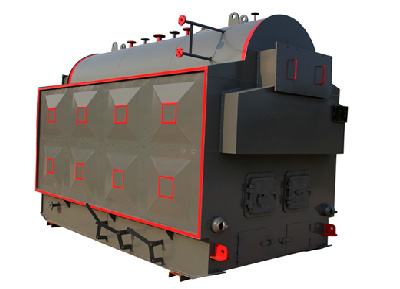

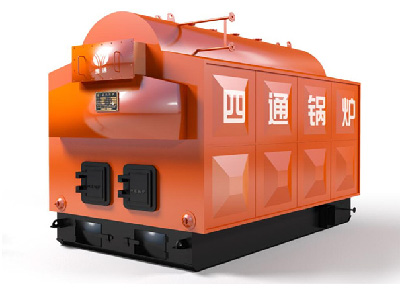

DZH series moving grate rice husk boiler is single drum water tube and fire tube structure, the combustion equipment is flexible grate, the fuel could be feed manually to the furnace through the door, with feature of avoid coking, increase the combustion space and adopts secondary air design. Biomass fuel is clean and renewable fuel, it has the advantages of environmental protection, energy saving, and low cost. Except bagasse and rice husk, the boiler could also burn wood chips, sawdust, peanut shell, cotton hull, stick, and other biomass fuels.

This DZH biomass boiler adopts the new scientific achievement, such as arch tube plate, and spirally smoke tubes to solve the problem of low thermal efficiency, coking, tube plate cracking, drum bulging, insufficient output. Sitong Boiler has a mature R&D and design team, could customize the boilers according to customers’ different requirement.



Application:

Steam boiler is widely used in medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing washing, rubber processing, paper making, wood processing, hotel and garment manufacturing and tanning , etc.


Performance Advantages


1. High thermal efficiency

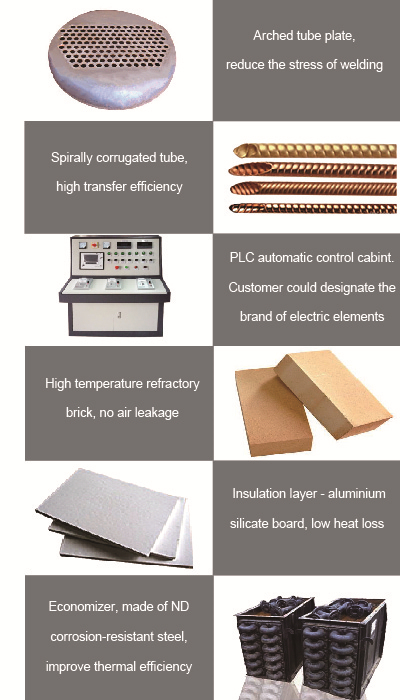

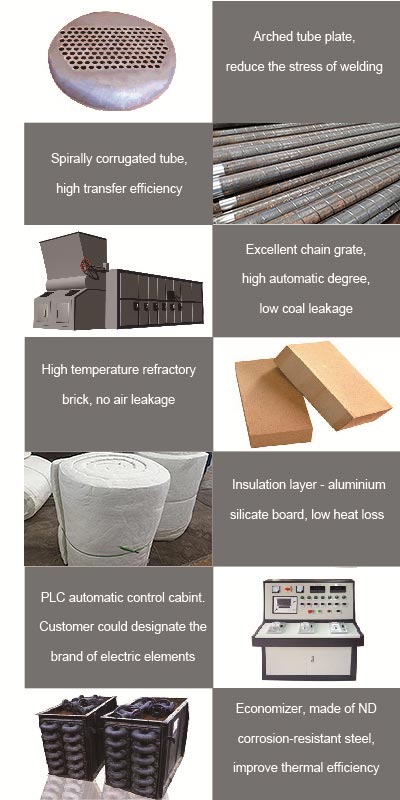

1) The spirally corrugated tube strengthen the heat transfer, improve thermal efficiency. The flue gas has the foundation of disturbance, avoid ash depositing in tube.

2)The furnace wall was poured entirely by the heat-resistance concrete and high-temperature-resistance refractory brick, and the boiler shell uses aluminium silicate board for heat preservation, low heat loss.

3) Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, increase thermal efficiency.



2. Anti-coking

1) For the easy coking biomass fuels, increase the size of furnace, large space to achieve sufficient combustion.

2) Adopts unique secondary air design, improves the ignition condition of biomass fuel, sufficient air supply to make sure the high combustion efficiency.



3. Avoid bulging

The riser tube bundle under the drum, remove the dead water region at the bottom of drum, sludge is not easy for depositing, the high temperature area of drum has better cooling, prevent bulging.



4. Avoid tube plate cracking

1) The boiler adopts arched tube plate and spirally corrugated tube, change the quasi-steel body into quasi-elastic body structure, reduce stress.

2) Arrange two sides gas duct in drum, the smoke gas could enter into the front smoke chamber smoothly, the temperature of tube plate is lower than 600℃, avoid cracking leaded by high temperature.


5. Sufficient output

Adopts horizontal type three pass structure and large furnace, to ensure the sufficient combustion, and the boiler could absorb the thermal expansion effectively. The large diameter boiler drum increases the radiant heating surface, to ensure the sufficient output.



6. Environmental protection

1) Both wing walls and outlet widow inside of the furnace have the function of dust suppression,that make the original dust concentration decrease.

2) Will equip with dust collector, particulate matter in the smoke gas also will be reduced before chimney.


Parameter


Steam Boiler

Model Rated evaporation capacity (t/h) Working pressure (Mpa) Thermal Efficiency (%) Fuel consumption (Kg/h) Overall dimension L×W×H (mm) Weight (t)
DZH0.5-0.7/1.0-T 0.5 0.7/1.0 78 150 3228×2000×2656 8
DZH1-0.7/1.0/1.25-T 1 0.7/1.0/1.25 80 301 4108×2200×2915 12
DZH2-0.7/1.0/1.25/1.6-T 2 0.7/1.0/1.25/1.6 80 602 4700×2300×3270 15
DZH4-1.25/1.6-T 4 1.25/1.6 80 1190 5600×2550×3563 22

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.


Hot Water Boiler

Model

Rated power (MW)

Rated
pressure(Mpa)
Supply water
temperature(℃)
Return water
temperature(℃)
Size (m) Weight (t)
DZH0.35-0.7/95/70 0.35 0.7 95 70 3.2x2.0x2.6 8
DZH0.7-0.7/95/70
DZH0.7-1.0/95/70
0.7 0.7/1.0 95 70 4.1x2.2x2.9 12
DZH1.4-0.7/95/70
DZH1.4-1.0/95/70
1.4 0.7/1.0 95 70 4.7x2.3x3.2 15
DZH2.8-0.7/95/70
DZH2.8-1.0/95/70
2.8 0.7/1.0 95 70 5.6x2.5x3.5 22

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.



Performance Advantages


1. High thermal efficiency

1) The spirally corrugated tube strengthen the heat transfer, improve thermal efficiency. The flue gas has the foundation of disturbance, avoid ash depositing in tube.

2)The furnace wall was poured entirely by the heat-resistance concrete and high-temperature-resistance refractory brick, and the boiler shell uses aluminium silicate board for heat preservation, low heat loss.

3) Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, increase thermal efficiency.



2. Anti-coking

1)For the easy coking biomass fuels, increase the size of furnace, large space to achieve sufficient combustion.

2) Adopts unique secondary air design, improves the ignition condition of biomass fuel, sufficient air supply to make sure the high combustion efficiency.



3. Avoid bulging

The riser tube bundle under the drum, remove the dead water region at the bottom of drum, sludge is not easy for depositing, the high temperature area of drum has better cooling, prevent bulging.



4. Avoid tube plate cracking

1) The boiler adopts arched tube plate and spirally corrugated tube, change the quasi-steel body into quasi-elastic body structure, reduce stress.

2) Arrange two sides gas duct in drum, the smoke gas could enter into the front smoke chamber smoothly, the temperature of tube plate is lower than 600℃, avoid cracking leaded by high temperature.


5. Sufficient output

Adopts horizontal type three pass structure and large furnace, to ensure the sufficient combustion, and the boiler could absorb the thermal expansion effectively. The large diameter boiler drum increases the radiant heating surface, to ensure the sufficient output.



6. Environmental protection

1) Both wing wall and outlet widow inside of the furnace have the function of dust suppression,that make the original dust concentration decrease.

2) Will equip with dust collector, particulate matter in the smoke gas also will be reduced before chimney.


Parameter


Steam Boiler

Model Rated evaporation capacity (t/h) Working pressure (Mpa) Thermal Efficiency (%) Fuel consumption (Kg/h) Overall dimension L×W×H (mm) Weight (t)
DZH0.5-0.7/1.0-T 0.5 0.7/1.0 78 150 3228×2000×2656 8
DZH1-0.7/1.0/1.25-T 1 0.7/1.0/1.25 80 301 4108×2200×2915 12
DZH2-0.7/1.0/1.25/1.6-T 2 0.7/1.0/1.25/1.6 80 602 4700×2300×3270 15
DZH4-1.25/1.6-T 4 1.25/1.6 80 1190 5600×2550×3563 22

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.


Hot Water Boiler

Model

Rated power (MW)

Rated
pressure(Mpa)
Supply water
temperature(℃)
Return water
temperature(℃)
Size (m) Weight (t)
DZH0.35-0.7/95/70 0.35 0.7 95 70 3.2x2.0x2.6 8
DZH0.7-0.7/95/70
DZH0.7-1.0/95/70
0.7 0.7/1.0 95 70 4.1x2.2x2.9 12
DZH1.4-0.7/95/70
DZH1.4-1.0/95/70
1.4 0.7/1.0 95 70 4.7x2.3x3.2 15
DZH2.8-0.7/95/70
DZH2.8-1.0/95/70
2.8 0.7/1.0 95 70 5.6x2.5x3.5 22

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.



Steam Boiler

Model Rated evaporation capacity (t/h) Working pressure (Mpa) Thermal Efficiency (%) Fuel consumption (Kg/h) Overall dimension L×W×H (mm) Weight (t)
DZH0.5-0.7/1.0-T 0.5 0.7/1.0 78 150 3228×2000×2656 8
DZH1-0.7/1.0/1.25-T 1 0.7/1.0/1.25 80 301 4108×2200×2915 12
DZH2-0.7/1.0/1.25/1.6-T 2 0.7/1.0/1.25/1.6 80 602 4700×2300×3270 15
DZH4-1.25/1.6-T 4 1.25/1.6 80 1190 5600×2550×3563 22

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.

Hot water Boiler

Model Rated power (MW) Rated
pressure(Mpa)
Supply water
temperature(℃)
Return water
temperature(℃)
Size (m) Weight (t)
DZH0.35-0.7/95/70 0.35 0.7 95 70 3.2x2.0x2.6 8
DZH0.7-0.7/95/70
DZH0.7-1.0/95/70
0.7 0.7/1.0 95 70 4.1x2.2x2.9 12
DZH1.4-0.7/95/70
DZH1.4-1.0/95/70
1.4 0.7/1.0 95 70 4.7x2.3x3.2 15
DZH2.8-0.7/95/70
DZH2.8-1.0/95/70
2.8 0.7/1.0 95 70 5.6x2.5x3.5 22

Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.

 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.

Case

  • 1
  • 2

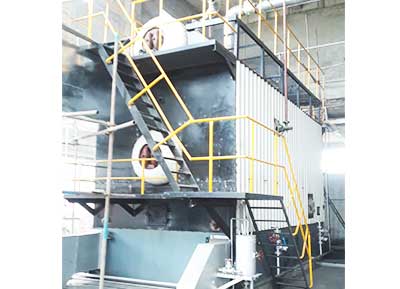

  • 2ton DZH Series Animal Waste Fuel Moving Grate Boiler for Thailand Livestock Farm

    2ton DZH Series Animal Waste Fuel Moving Grate Boiler for Thailand Livestock Farm

    1. Secondary air design
    2. Avoid coking, low exhaust gas emission
    3. Highcombustion efficiency (≧90%) and thermal efficiency (82%)

    Learn more >>
