WNS Oil & Gas Fire Tube Boiler

  • Overview
  • Advantage
  • Parameter

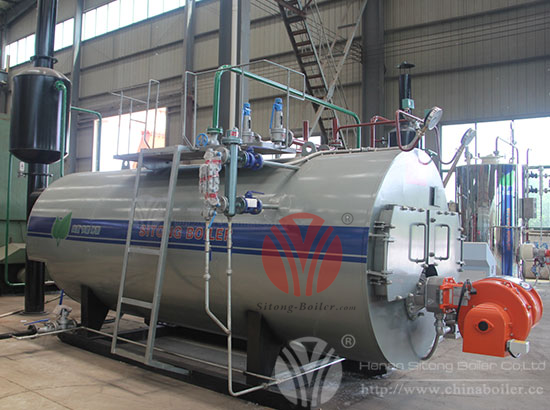

WNS series gas oil steam fire tube boiler is a kind of safe and high efficiency heating equipment with full automatic control system. It is the patent products of Sitong Boiler, the patent number is 2014 2 0504448.2. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

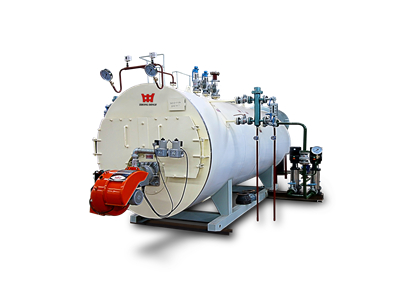

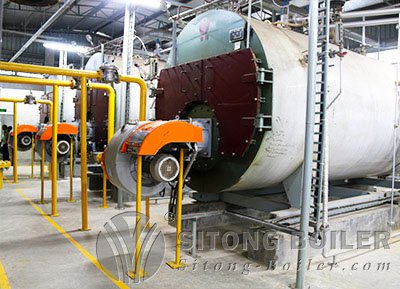

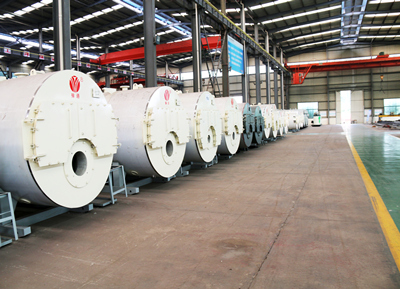

WNS oil gas fire tube boiler

Application:

As the WNS series oil gas fired boiler has the characteristics of compact structure, safe operation, convenient installation, low pollution and low noise, it is widely used for industry production and processing, such as textile mill, medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, moreover, it could be used for central heating in enterprise, hotel, hospital, civil architecture, etc.

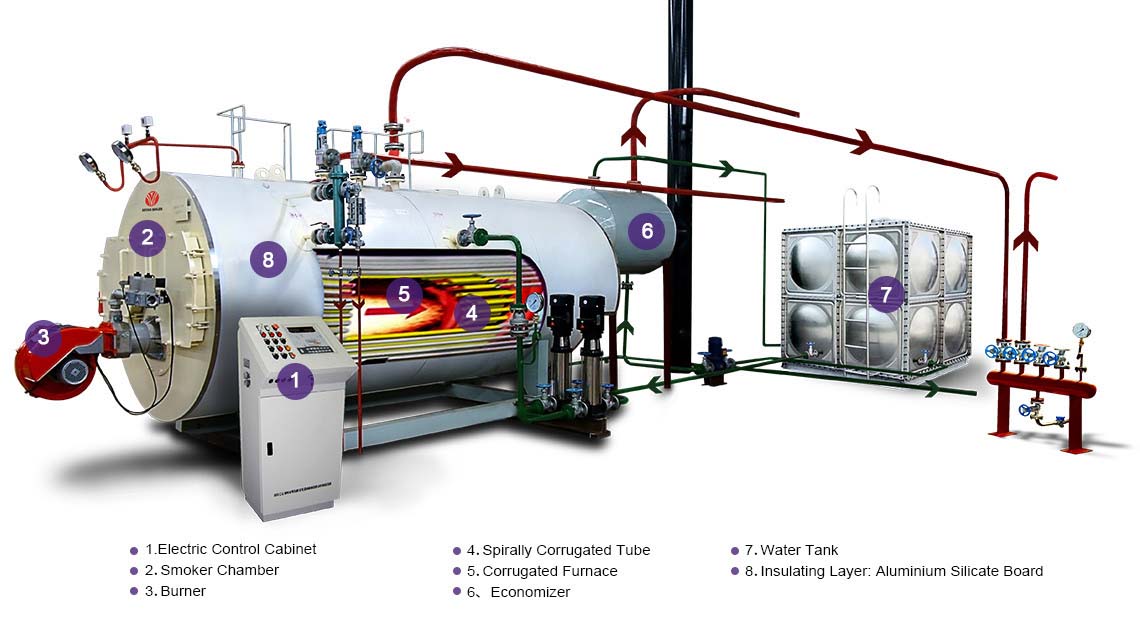

Advantages


1. High Efficiency


1) Equipped with high quality and reliable burner, high combustion efficiency, low harmful gas emission and noiseless operation.

2) Adopts horizontal type three pass structure, absorbs the thermal expansion effectively. Uses large diameter corrugated furnace. Large combustion space, high combustion efficiency.

3) The spirally corrugated tube strengthen the disturbance of flue gas, high heat transfer efficiency.

4) The boiler shell use aluminium silicate board for heat preservation, high thermal shielding efficiency, low heat loss, increase the boiler thermal efficiency.

5) Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, the thermal efficiency could be increased to as high as 98%.



2. High Safety Performance


1) Complete gas manifolds and protection system, including filter, pressure regulating valve, and solenoid valve, etc., to ensure the safety performance of fuel.

2) Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.

3) Adopts PLC full automatic intelligent control cabinet and interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.

4) Equipped with explosion proof equipment, discharge high energy when deflagration happened in furnace, to ensure the boiler operate safety and efficiently.



3. Low Cost


1) Adopts proprietary technology of Sitong Boiler, the boiler is 100% butt welding, high quality, and long working life, low maintenance fee.

2) The boiler has high combustion efficiency,energy saving, and low cost on fuel.



4. Save Space


Adopts fast assemble structure, compact structure, convenient for transportation, small occupation.



5. Convenient Maintenance


1) There are manhole, head hole, and special hand hole on the boiler. The front and back smoke chambers are equipped with movable doors, convenient for boiler internal installation, inspection and clean.

2) The explosion proof door has the fire sight glass and inspection gallery, convenient for furnace checking and maintaining.



Parameter


Model

Rated evaporation

capacity (t/h)

Rated steam

pressure (Mpa)

Thermal efficiency

 (%)

Fuel consumption

Overall dimension

 (m)

Weight

(t)

Body Heating

Area (m2)

Light oil (Kg/h) Natural gas (Nm³/h)
WNS1-0.7/1.0-Y(Q) 1 0.7/1.0 >90 66.5 75 3.6×2.0×2.0 4 25
WNS2-1.0/1.25-Y(Q) 2 1.0/1.25 >90.2 133 150 4.8×2.5×2.46 8 60
WNS4-1.0/1.25-Y(Q) 4 1.0/1.25 >91 266 300 5.8×2.85×2.8 13 113
WNS6-1.25/1.6-Y(Q) 6 1.25/1.6 >91.5 399 450 7.25×3.1×3.15 19 181
WN8-1.25/1.6-Y(Q) 8 1.25/1.6 >91.6 532 600 7.45×3.26×3.2 22.6 190
WNS15-1.25/1.6-Y(Q) 15 1.25/1.6 >91.8 997 1125 8.7×3.7×3.5 34 346
WNS20-1.25/1.6-Y(Q) 20 1.25/1.6 >92 1204 1418 10×3.6×4.0 45 467
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.


1. High Efficiency


1) Equipped with high quality and reliable burner, high combustion efficiency, low harmful gas emission and noiseless operation.

2) Adopts horizontal type three pass structure, absorbs the thermal expansion effectively. Uses large diameter corrugated furnace. Large combustion space, high combustion efficiency.

3) The spirally corrugated tube strengthen the disturbance of flue gas, high heat transfer efficiency.

4) The boiler shell use aluminium silicate board for heat preservation, high thermal shielding efficiency, low heat loss, increase the boiler thermal efficiency.

5) Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, the thermal efficiency could be increased to as high as 98%.



2. High Safety Performance


1) Complete gas manifolds and protection system, including filter, pressure regulating valve, and solenoid valve, etc., to ensure the safety performance of fuel.

2) Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.

3) Adopts PLC full automatic intelligent control cabinet and interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.

4) Equipped with explosion proof equipment, discharge high energy when deflagration happened in furnace, to ensure the boiler operate safety and efficiently.



3. Low Cost


1) Adopts proprietary technology of Sitong Boiler, the boiler is 100% butt welding, high quality, and long working life, low maintenance fee.

2) The boiler has high combustion efficiency,energy saving, and low cost on fuel.



4. Save Space


Adopts fast assemble structure, compact structure, convenient for transportation, small occupation.



5. Convenient Maintenance


1) There are manhole, head hole, and special hand hole on the boiler. The front and back smoke chambers are equipped with movable doors, convenient for boiler internal installation, inspection and clean.

2) The explosion proof door has the fire sight glass and inspection gallery, convenient for furnace checking and maintaining.

Steam Boiler

Model

Rated evaporation

capacity (t/h)

Rated steam

pressure (Mpa)

Thermal efficiency

 (%)

Fuel consumption

Overall dimension

 (m)

Weight

(t)

Body Heating

Area (m2)

Light oil (Kg/h) Natural gas (Nm³/h)
WNS1-0.7/1.0-Y(Q) 1 0.7/1.0 >90 66.5 75 3.6×2.0×2.0 4 25
WNS2-1.0/1.25-Y(Q) 2 1.0/1.25 >90.2 133 150 4.8×2.5×2.46 8 60
WNS4-1.0/1.25-Y(Q) 4 1.0/1.25 >91 266 300 5.8×2.85×2.8 13 113
WNS6-1.25/1.6-Y(Q) 6 1.25/1.6 >91.5 399 450 7.25×3.1×3.15 19 181
WN8-1.25/1.6-Y(Q) 8 1.25/1.6 >91.6 532 600 7.45×3.26×3.2 22.6 190
WNS15-1.25/1.6-Y(Q) 15 1.25/1.6 >91.8 997 1125 8.7×3.7×3.5 34 346
WNS20-1.25/1.6-Y(Q) 20 1.25/1.6 >92 1204 1418 10×3.6×4.0 45 467
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.


Hot Water Boiler Bearing Pressure

Model Rated Power (MW) Working Pressure (MPa) Efficiency (%) Fuel consumption Weight (kg) Overall Dimension Length×Width×Height (mm)
Light Oil (kg/h) LNG (Nm3/H) CG (Nm3/H)
WNS 1.05-95/70-Y(Q) 1.05 0.7 91~93 98.5 119.4 253.7 3400 3500×1800×2050
WNS 1.75-95/70-Y(Q) 1.75 1.0 91~93 164.2 198.9 422.8 4800 4500×1950×2300
WNS 2.1-95/70-Y(Q) 2.1 1.0 91~93 197 238.7 507.3 6682 4800×2000×2500
WNS4.2-95/70-Y(Q) 4.2 1.0 91~93 394 477.5 1014.6 12400 7850×2750×3460
WNS7-95/70-Y(Q) 7 1.0 91~93 656.7 795.8 1691 15300 8600×3770×4150
Note: 1. The hot value of LNG: 8500kal/Nm3, hot value of light oil: 10300kal/Nm3, hot value of the city coal gas: 4000kal/Nm3 2. Parameter is for reference, if any changes, should follow the actual drawing.

Hot Water Boiler With Normal Pressure

Model Rated Power (MW) Supply water temperature(℃) Return water Temperature (℃) Fuel Consumption Efficiency (%) Weight (kg) Overall Dimension (mm)
Light oil(Kg/h) City gas(Nm³/h)
CWNS0.35-85/65-Y(Q) 0.35 95 20/70 32.5 83.6 90 1280 1960×920×1255
CWNS0.58-85/65-Y(Q) 0.58 95 20/70 53.8 138.6 90 1900 2670×1120×1485
CWNS1.05-85/65-Y(Q) 1.05 95 20/70 97.4 250.8 90 2900 2930×1360×1760
CWNS1.4-85/65-Y(Q) 1.4 95 20/70 129.9 334.4 90 3750 3300×1470×1890
CWNS1.75-85/65-Y(Q) 1.75 95 20/70 162.4 418.1 90 3950 3530×1580×2010
CWNS2.1-85/65-Y(Q) 2.1 95 20/70 194.8 501.7 90 4950 3800×1680×2110
Note: 1. Parameter is for reference only, we can design the boilers based on customers’ needs. 2. The working pressure is normal pressure (atmosphere pressure).

Case

  • 1
  • 2
  • 3
  • 4

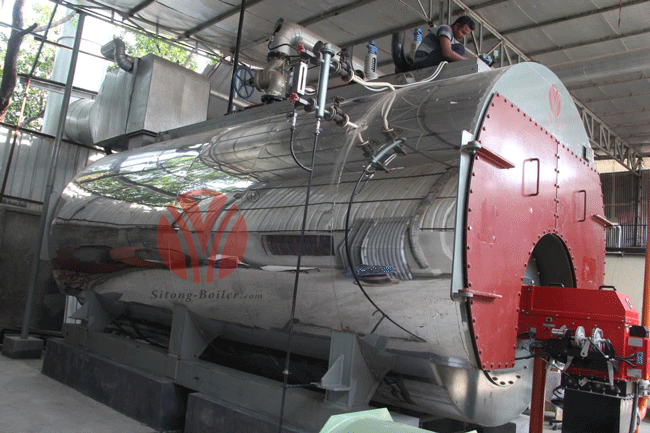

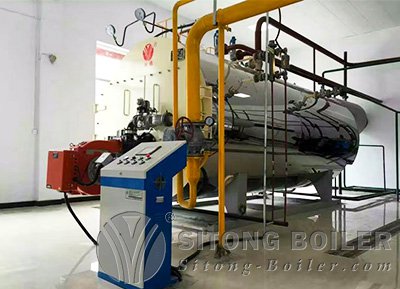

  • 181 PSI Pressure Oil Gas Fired Packaged Boiler for Towel Production Line

    181 PSI Pressure Oil Gas Fired Packaged Boiler for Towel Production Line

    Model: WNS15-1.25-Q oil gas fired steam boiler
    Steam capacity:15ton (tph), 10500KW
    Working pressure:1.25MPa (12.5bar, 12.5kg/m2, 181psi)

    Learn more >>

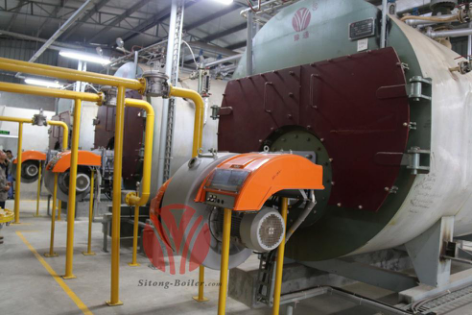

  • 1.5ton WNS Series Gas Fired Condensing Boiler for Sanya Gym

    1.5ton WNS Series Gas Fired Condensing Boiler for Sanya Gym

    Model: WNS 1.5-1.0-Y.Q.
    Rated evaporation capacity: 1.5 t/h (tph),1050KW,900000kcal
    Working pressure: 1.0MPa, 10bar, 10kg/m2,145psi

    Learn more >>
  • 3 Sets 10ton Capacity Diesel Oil Fired Steam Boiler for Bangladesh Textile Factory

    Model: WNS 10-1.6-YQ
    Rated evaporation capacity: 10 t/h (tph), 7000KW, 6000000kcal
    Working pressure: 1.6MPa, 16bar, 16kg/m2,232psi

    Learn more >>

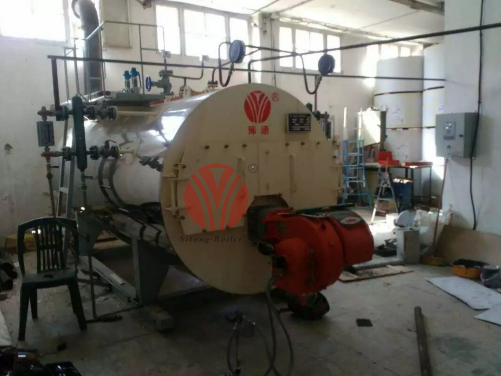

  • 1t/h WNS Series Water Tube Steam Boiler for Egypt Machinery Plant

    1t/h WNS Series Water Tube Steam Boiler for Egypt Machinery Plant

    Model: WNS 1-1.25-YQ
    Rated evaporation capacity: 1 t/h (tph), 700KW, 600,000kcal
    Working pressure: 1.5MPa (12.5bar, 12.5kg/m2, 181psi)

    Learn more >>
